| 主要技術參數 | SPECIFICATIONS | Units | CKL61160G |
| 床身上更大回轉直徑 | Swing over bed | mm | 1640 |
| 橫滑板上更大回轉直徑 | Swing over cross slide | mm | 1020 |
| 更大工件長度 | Distance between centers | mm | 3000-10000 |
| 床身導軌寬度 | Guideway width | mm | 1100 |
| 床身承重范圍 | Max. load capacity | T | 10/20/30 |
| 主軸孔徑范圍 | Spindle bore | mm | 100 |
| 主軸孔徑錐度 | Spindle bore taper | - | 公制120 |
| Metric 120 | |||
| 主軸鼻端型號 | Spindle nose type | - | A2-15 |
| 主軸轉速級數 | Spindle speed steps | - | 4檔變頻 |
| VF. 4steps | |||
| 主軸轉速范圍 | Spindle speed range | rpm | 10-300 |
| 卡盤規格 | Chuck | mm | φ1250手動四爪 |
| φ1250 4-jaw manual | |||
| 刀架類型 | Turret/tool post | - | 4工位電動刀架 |
| Electric 4 position | |||
| 刀具尺寸 | Tool size | mm | 50 x 50 |
| X軸行程 | X axis travel | mm | 830 |
| Z軸行程 | Z axis travel | mm | 2850-9850 |
| X軸快速進給速度 | X axis rapid traverse | mm/min | 4000 |
| Z軸快速進給速度 | Z axis rapid traverse | mm/min | 6000 |
| 尾座套筒直徑 | Tailstock quill diameter | mm | φ220 |
| 尾座套筒錐度 | Tailstock quill taper | - | 公制80 |
| Metric 80 | |||
| 尾座套筒行程 | Tailstock quill travel | mm | 300 |
| 主軸電機 | Main spindle motor | kw | 37 |
| 冷卻泵電機 | Coolant pump motor | kw | 0.25 |
| 機床重量 | Weight for 3000 | kg | 246000 |
| Machine weight | |||
| Weight for 5000 | kg | 264000 | |
| Weight for 8000 | kg | 291000 | |
| Weight for 10000 | kg | 309000 | |
| 外形尺寸 | Dimension for 3000 | mm | 6700x2700 |
| Overall dimension | x2560 | ||
| Dimension for 5000 | mm | 8700x2700 | |
| x2560 | |||
| Dimension for 8000 | mm | 11700x2700 | |
| x2560 | |||
| Dimension for 10000 | mm | 13700x2700 | |
|
x2560 |

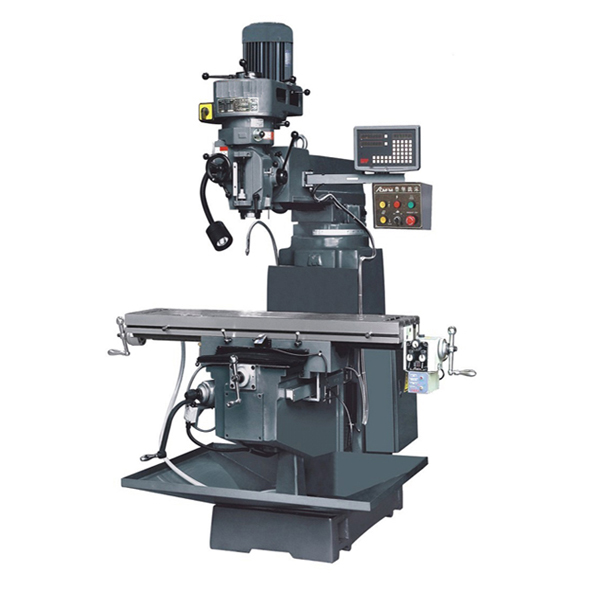

HT3號.HT4號.高速炮塔銑床
